2. Task 2: Behavior Simulation of Process (Week 3)

Table of Contents

• Task 2: Behavior Simulation of Process (Week 3)
  • Knowledge Points
  • Example: Signal assignment with process

• Objective: Understand the difference between the signal assignment and variable assignment in a process, understand the delta delay, and the simulation of a process.

2.1. Knowledge Points

• Data Object

  • Variable, p47-48

• Sequential VHDL

  • Process, p94-99

  • Sequential Statements p100-104, p118-121

    • sequential signal assignment statement
    • variable assignment statement

• Delay Model

  • Delta delay model, p91-93

• Test Bench

  • p142-159

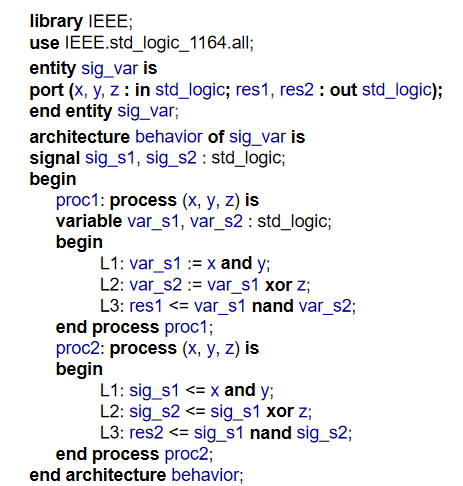

2.2. Example: Signal assignment with process
