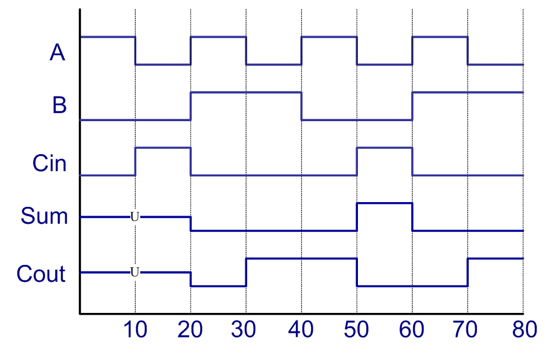

1. Task 1: Behavior Simulation of Full Adder (Week 2)

Table of Contents

• Task 1: Behavior Simulation of Full Adder (Week 2)
  • Knowledge Points

• Objective: Understand the simple concurrent signal assignment statement, the inertial delay model, and the simulation of a design.

1.1. Knowledge Points

• Data Object

  • Signal, p41-46
  • Constant, p49-50

• Data Type

  • bit, p51-53
  • array, enumeration, p56-57
  • std_logic, p58-60

• Operators, p61-65

  • Logic Operators: and, or, nand, nor, xor, xnor,
  • Adding: +, -, &

• Concurrent Statements

  • simple concurrent signal assignment (CSA) statement, p71-74

• Delay Model

  • Inertial delay model, p86-88

• Test Bench

  • Self study Chapter 5.3, p142-148

L1: s1 <= (A xor B) after gate_delay;
L2: s2 <= (Cin and s1) after gate_delay;
L3: s3 <= (A and B) after gate_delay;
L4: sum <= (s1 xor Cin) after gate_delay;
L5: cout <= (s2 or s3) after gate_delay;
